Sany SY135C Excavator
Finance a brand new Sany SY135C excavator today with America's best 5 year 5,000 warranty! We've got Sany SY135C excavators in stock and ready for your next rental or sale! Give us a call today!
Tier 3 Certified
Rated Power: 98 hp / 73 kW
Operating Weight: 30,424 lb / 13800 kg
Bucket Breakout: 20,682 lbf / 92 kN
Dig Depth: 18' 1"
Sany SY135C Excavators For Sale
Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500

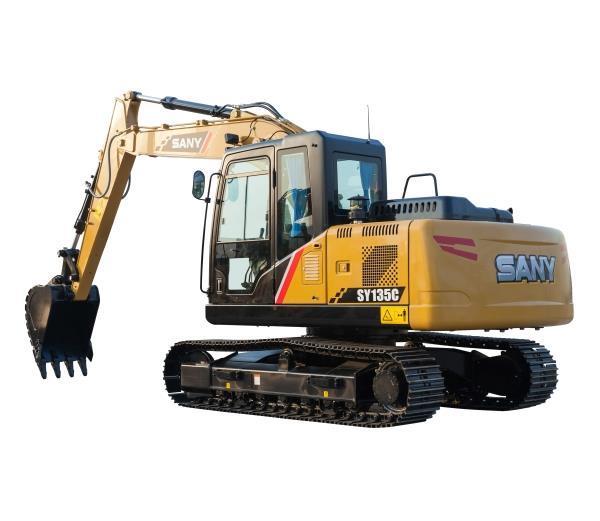

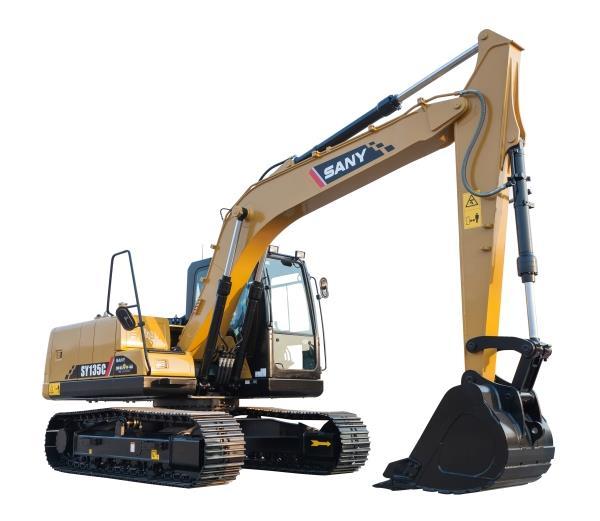

Meet the New Sany SY135C Excavator
The Sany SY135C excavator is designed to help you work efficiently while maximizing your job site productivity. The 13.5-ton excavator has many features to help operators achieve the balance of power, smoothness, fuel efficiency, and speed.

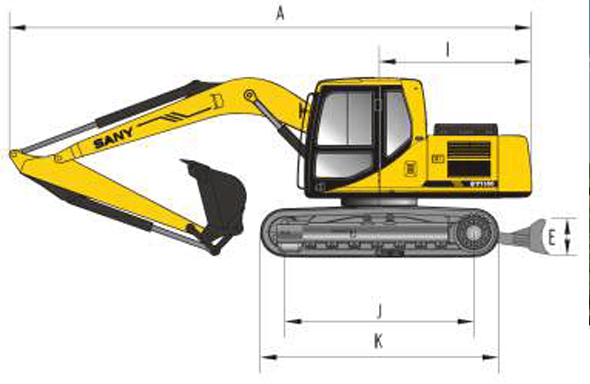

Sany SY135C Tech Specs
Sany SY135C Machine Features
• Engine: Isuzu AJ-4JJ1X, Tier 3
• New design increases efficiency and productivity while reducing fuel consumption
• Four standard work modes for differing job-site conditions
• Redesigned chassis for excellent stability
• Standard features include two-way hydraulics, a backfill blade, and a pattern-control change valve to increase productivity and versatility.
High-Performance Engine
The engine output power is 73kW with the increased hydraulic power and improved fuel efficiency, SY135C adopts the engine customized for SANY. The engine with a fourcylinder, four-stroke direct-injection turbocharger provides strong operating power for the machine.
Optimized Power Control

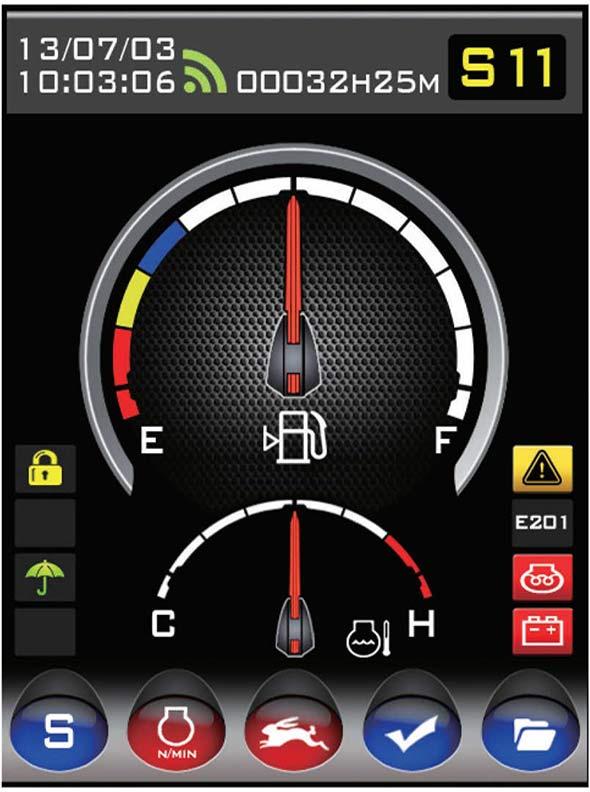

The engine is designed with four working modes. The working mode can be changed on the monitor according to different applications, which can maximize the operating efficiency and reduce fuel consumption.
Innovative Electro-Hydraulic Control System
An advanced computer dynamic control system(CDCS) determines engine output power as per the external load demand, achieving the optimum control of the excavator-extremal load operating system.
Electric Control Module for Best Engine Efficiency
The electric control module has the capability of making a quick response to the change of operating variables in order to achieve optimum engine performance. It is fully integrated with sensors of fuel, engine oil, air intake, coolant, and exhaust system to conduct real-time monitoring and auto-adjustment on the system conditions, which can ensure the engine won't overload when the excavator works with a full load.

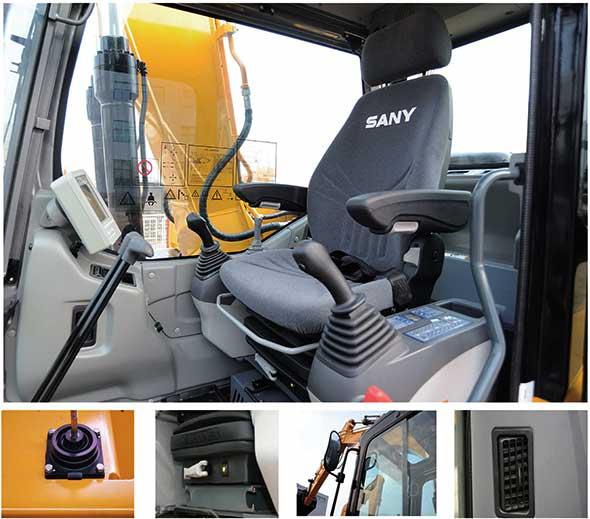

Operator Comfort
Innovative Large Cab
The innovative large cab is equipped with an adjustable seat with suspension. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.
Controls & Levers
The control levers and joysticks designed and arranged according to ergonomic can be operated easily. Each operation button is within the reach of the operator.
Silicone Rubber Shock Absorber
A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increased the cab stability while improving operator comfort.
Pressure Sealed Cab
The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.
Operating Priority & Fuel-saving Priority Working Modes
Heavy-Duty Mode:
Full power output provides efficient operation.
Standard mode: 90% of the rated power reduces fuel consumption and noise.
Light duty mode: 80% of the rated power ensures fuel economy.
Break mode: 90% of the rated power reduces fuel consumption.
Additional Features
High Efficiency & Low Consumption
The 13,500 kg SY135C is equipped with an Isuzu 4JJ1X engine, with an output power of 77/2000kW/rpm, greatly increasing the hydraulic power and fuel efficiency. The customized engine for SY135C is configured with a four-cylinder, four-stroke direct-injection turbocharger, providing strong operating power for the machine.
Faster Working Speed with Larger Digging Force
The 12 rpm swing speed largely improves the working efficiency, with the digging force of the bucket reaching 92.7 kN, and the digging force of the arm reaching 66 kN.
Electric Control Module
The electric control module has the capability of making quick responses to the operating changes, so as to achieve the optimum engine performance. It’s fully integrated with sensors of fuel, engine oil, air intake, coolant, and exhaust system to conduct real-time monitoring and auto-adjustment on the system conditions.
Electric-Hydraulic Control System
Equipped with a dual-pump, dual-circuit constant power control system, the engine fully develops its power to provide a strong operating force, helping get your work done efficiently and effectively.
The ESS Control (ESS Control) and Hydraulic Control (HSS Control), equip the engine with real-time power matches, improving operational productivity and reducing fuel consumption.
Quality Parts & Components
SY135C deploys the customized engine, with 73 kW horsepower and 4.329 displacements, largely reducing the heat load and prolonging the service life.
Reinforced X-frame modeled with digital tools make element analysis on loading capacity, realizing high-strength structure.
The high-strength swing platform with reinforced plates considerably improves the bending resistance performance.
Comfortable Operating Environment
The adjustable seat with suspension creates a comfortable operating environment, and the rigidity of the seats can also be changed on the operators’ weight.
Easy Maintenance
The SY135C is configured with OEM parts and components, largely extending the service life of the machine. The remote installation of replacement parts eases the maintaining procedures, increasing the using rate, and lowering the service cost.
Sany SY135C Excavator Parts
Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY135C excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588
Looking for A Used Sany SY135C Excavator?
Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used excavator, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used excavators.
