SANY STH1056A Telehandlers for Sale or Rent
Finance a brand new Sany STH1056A Telehandler today with the best 3 year 3,000 warranty. We've got Sany STH1056A Telehandlers in stock and ready for your next rental or sale! Give us a call today!

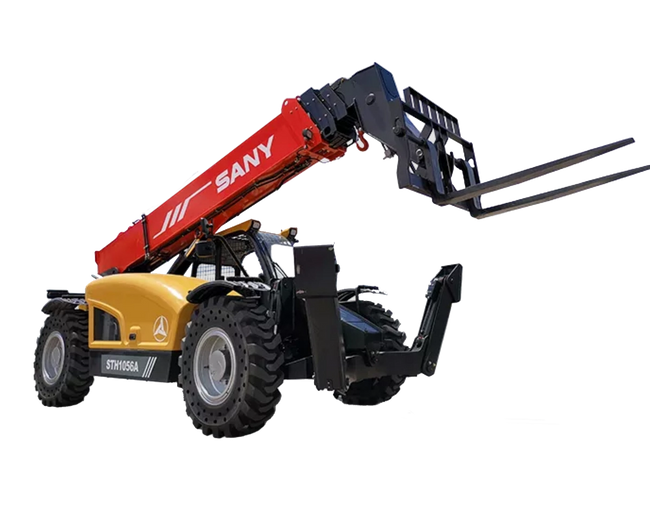

STH1056A TELEHANDLER
Gross Power: 130hp
Max Lift Height: 56' 2"
Wheel Base: 10' 6"/11' 5"
Operating Weight: 33,290 lb
Sany STH1056A Telehandlers
Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free Sany STH1056A Telehandlers on-site demo! 859-485-8500
The STH1056A has direct-drive power shift transmission that delivers smooth, responsive shifting and increased efficiency. The variable power technology matches different power curves according to the working conditions which lowers fuel consumption. The optional intelligent fan cooling system monitors the system's temperature in real-time. A hydraulic motor controls the speed of the fan, resulting in low power consumption and low noise. The load sensing hydraulic system distributes flow to different mechanisms according to actual needs This system responds rapidly and precisely, resulting in superb leveling quality.
Sany 1056A Telehandler Specs
OVERALL DIMENSIONS
Maximum Lift Height: 56' 2"
Maximum Forward Reach: 42' 11"
Height, Stowed: 8' 4"
Length, Stowed: 20' 7"
Width: 8' 5"
Wheelbase: 11' 5"
Ground Clearance (Center): 1' 6"
Ground Clearance (Axle): 1' 6"
Weight: 33,290 lb
CAPACITIES
Torque: 360 lbf
Electrical System: 12v
Hydraulic Tank Capacity: 33 gal
Hydraulic System Capacity: 42 gal
Fuel Tank Capacity: 36 gal
PERFORMANCE
Maximum Lift Capacity: 10,000 lb
Lift Capacity at Maximum: 5,000 lb
Lift Capacity at Maximum Reach: 3,000 lb
Boom (Raise/Lower): 11 sec/ 14 sec
Boom (Extend/Retract): 15 sec/ 16 sec
Frame Leveling: +/- 10 degrees
Maximum Drive Speed: 20 mph
Outside Turning Radius (4WS): 14' 11"
Auxiliary Hydraulic Flow: 17 GPM
Auxiliary Hydraulic Pressure: 2,466 psi
Standard Tire Size: 400/75-28
COMPONENTS
Engine: Cummins QSF3.8
Transmission: Dana VDT12000
Axles F/R: Dana 223/ Dana 212
Hydraulic Pump: Kawasaki Load Sense Piston Pump
Hydraulic Manifold: Parker
Sany STH1056A Motor Grader Features
Engine: Cummins QSC 3.8
Transmission: Dana VDT12000
Axles F/ R: Dana 223 / Dana 212
Hyd. Pump: Kawasaki Load Sense
Hydraulic Manifold: Parker
SANY STH-1056A Telehandler Parts
Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany STH-1056-A t and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588 today!
Looking for A Used Sany Telehandler?
Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used motor grader, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used motor graders.
