Sany SY16C Excavator
Finance a brand new Sany SY16C excavator today with America's best 5 year 5,000 warranty! We've got Sany SY16C Excavators in stock and ready for your next rental or sale! Give us a call today!
Tier 4f/ Stage IV Certified
Rated Power: 15.0 hp / 11.2kW
Operating Weight: 4,023 lb / 1825 kg
Bucket Breakout: 3,417 lbf / 15.2 kN
Dig Depth: 7' 2"
Sany SY16C Excavators For Sale
Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for special financing options or for a free on-site demo! 859-485-8500

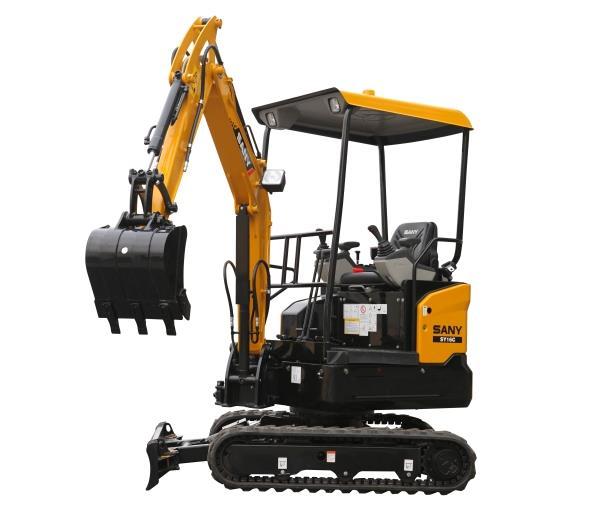

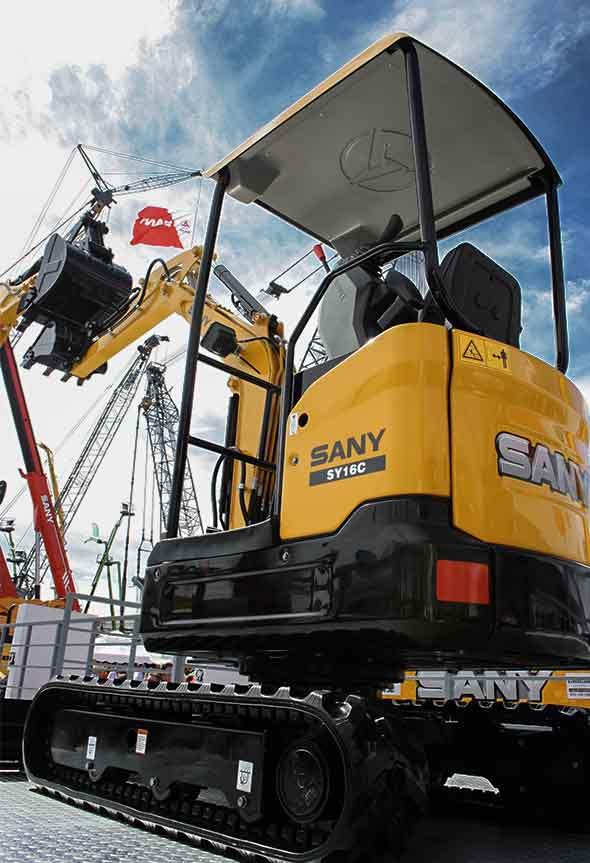

Meet the New Sany SY16C Excavator
The Sany SY16C mini excavator features high efficiency, low consumption and a comfortable operating environment. The 1.82 ton excavator has a wide range of applications in narrow spaces including forest, farm and indoors. Benefits & Features: High Performance & Reliability, Compact Design for Narrow Zone Operations, Strong Adaptability to Various Situations, Safe & Environmentally Friendly.

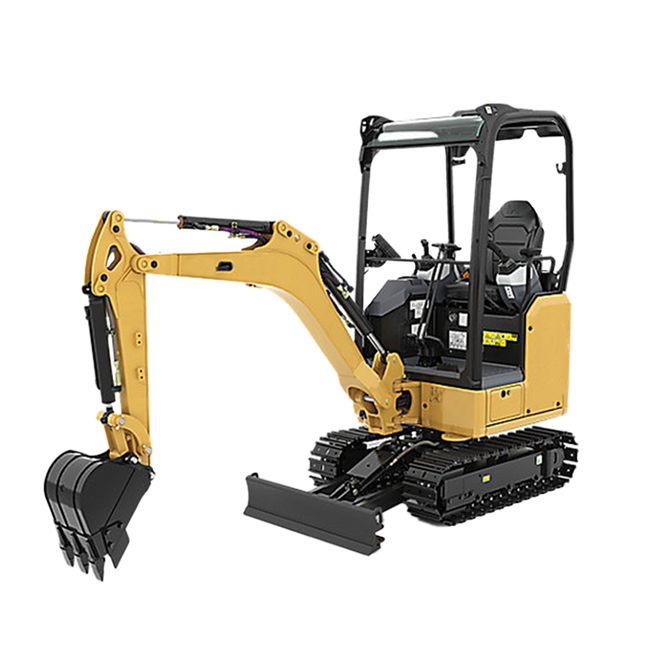

CAT 301.5

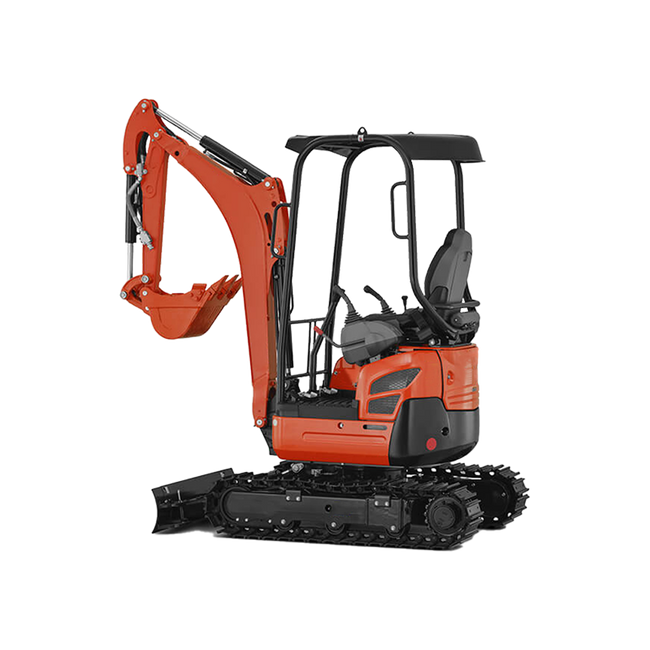

KUBOTA U17

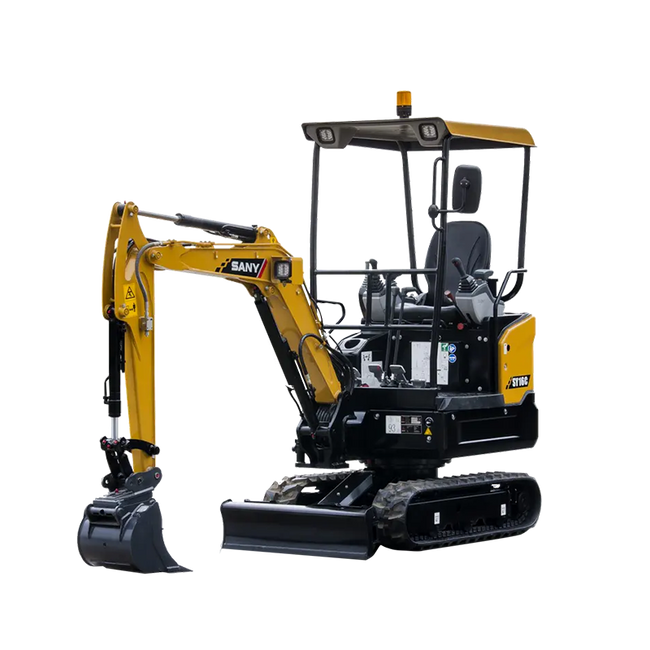

SANY SY16C

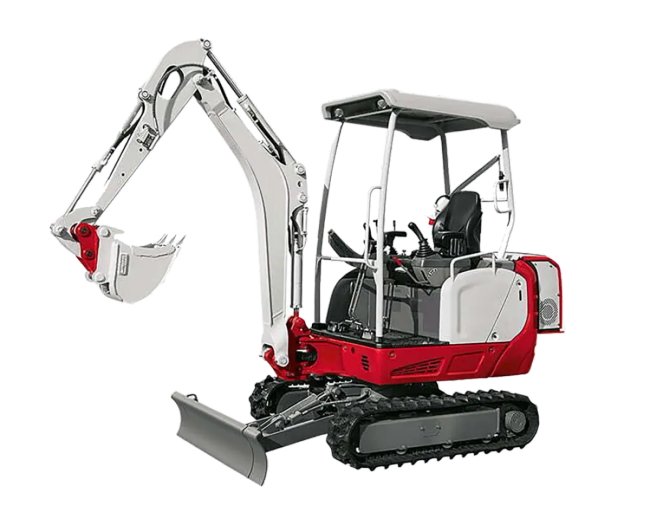

TAKEUCHI TB216

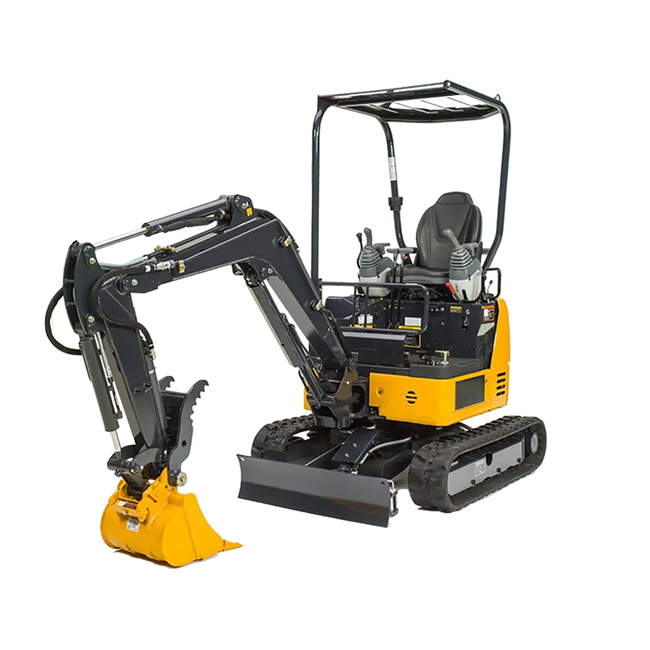

DEERE 17G
| BRAND | MODEL | TAIL SWING | ENGINE MANUFACTURER | ENGINE POWER | OPERATING WEIGHT | DIG DEPTH | MAX BUCKET BREAKOUT | MAX REACH |
|---|---|---|---|---|---|---|---|---|
| Kubota | U17 | Zero | Yanmar | 16.1 | 3704 | 91 | 3.4 | |
| Deere | 17G | Short | Yanmar | 14.5 | 3792 | 86 | N/A | 12 ft 6" |
| Kubota | KX018-4 | Conventional | Kubota | 16.1 | 3858 | 94 | 3.6 | |
| Yanmar | Vi017 | Zero | Yanmar | 13.5 | 39022 | 91 | 3.4 | 12 ft 1" |
| Takeuchi | TB216 | Conventional | Yanmar | 14.9 | 3902 | 94 | 4.2 | 13 ft 5" |
| Caterpillar | 301.5 | Short | Cat | 21.1 | 3913 | 100 | 3.2 | 13 ft |
| SANY | SY16C | Short | Yanmar | 15.0 | 4023 | 93 | 3.4 | 13 ft 1" |
| Caterpillar | 301.7 CR | Short | Yanmar | 21.1 | 4222 | 100 | 3.6 | |
| Takeuchi | TB 216 Hybrid | Conventional | Yanmar | 14.9 | 4277 | 94 | 4.2 | 13 ft 5" |

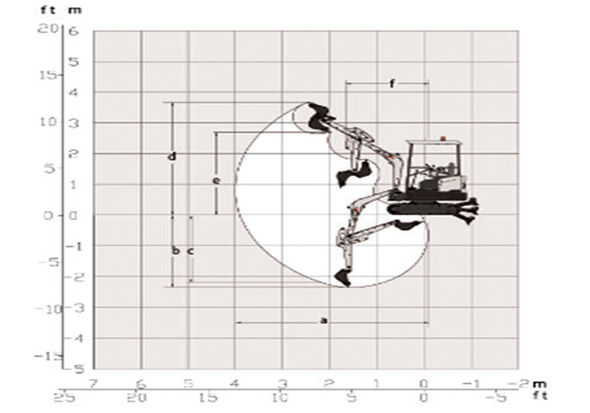

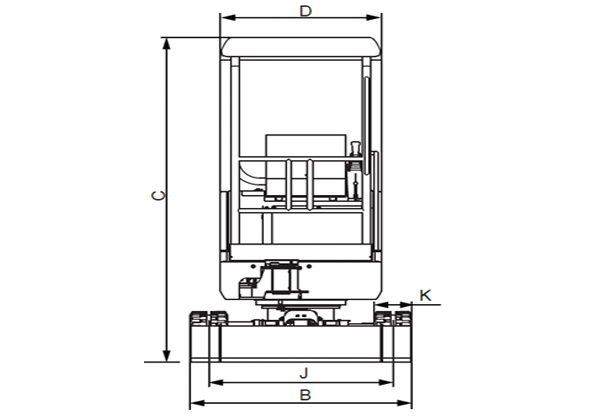

Sany SY16C Tech Specs
Sany SY16C Machine Features
• Engine: Yanmar 3TNV74F, Tier 4f
• Convenient service points for easy maintenance.
• Short tail swing is ideal for tight job sites and working in confined spaces
• Lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments
• Load sensing hydraulics for increased fuel efficiency and maximized performance
• Hydraulically extendable undercarriage with adjustable front blade width standard
• Two-speed travel
High Performance Engine

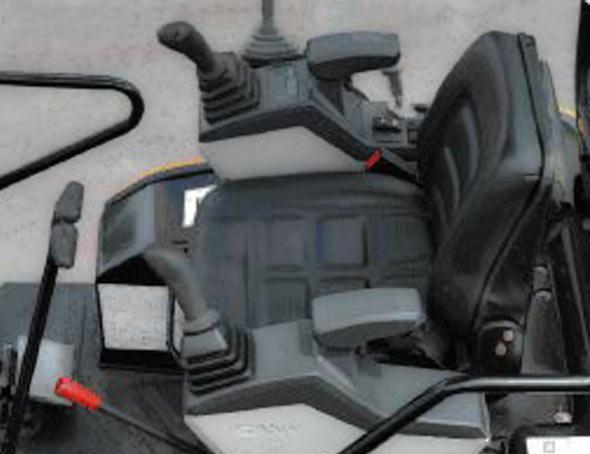

Ergonomically placed levers for smooth & comfortable operation experience.
The Sany SY16C has boom turning movement with mainframe swing.
Use of canopy facilitates all round visibility, very useful in working in tight spaces.
Operator Comfort
SY16C machine is fitted with one of the most popular Yan mar engine well-known for excellent & reliable performance at better fuel economy.
Widely used in range of applications & has high customer recognition. The engine is built for durability, fuel efficiency, easy & low cost maintenance.
Additional Features

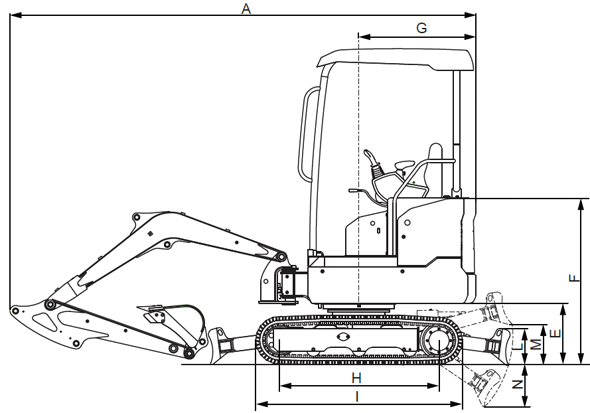

COMPACT DIMENSIONS
With an upper width of only 980 mm, the SANY SY16C can easily drive through narrow passages and spaces, especially with the 1820 kg weight, making the transportation more easily between different sites. The short tail swing is also ideal for tight job sites and confined spaces. Extendable Undercarriage and adjustable front blade. The hydraulically extendable undercarriage with adjustable front blade allows the machine to be configured for excellent working stability and optimum performance.
PERFORMANCE AND DURABILITY
Powerful Engine and Hydraulics
Owing to the self-independent SLSS hydraulic system, the 11.2 kW Yanmar engine and perfectly matched hydraulic pump, main valve and travel motor provide efficient and reliable performance, even in the toughest job sites. Low noise and vibration levels deliver comfortable operation.
Auxiliary Lines
The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and
running of hydraulic attachments.
Load Sensing Hydraulics
The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance.
ANSYS Platform for Prolonging the Usage Life
Based on the ANSYS platform, the strengthened working devices and undercarriage eases the stress of concentration, making the using life prolong by 30%.
USER FRIENDLY OPERATION
The exchanges of steel track and rubber track make it accessible on the highroad, and suit various working environment.
Rotary arm
The working configuration of the arm ranges from 595 mm of left turn and 350 mm of right turn, making the outer edge of the track could be reached, ideal for the job in compact space like edge or corner of walls.
Convenient maintenance
The tail end of the machine is mainly designed for the daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.
