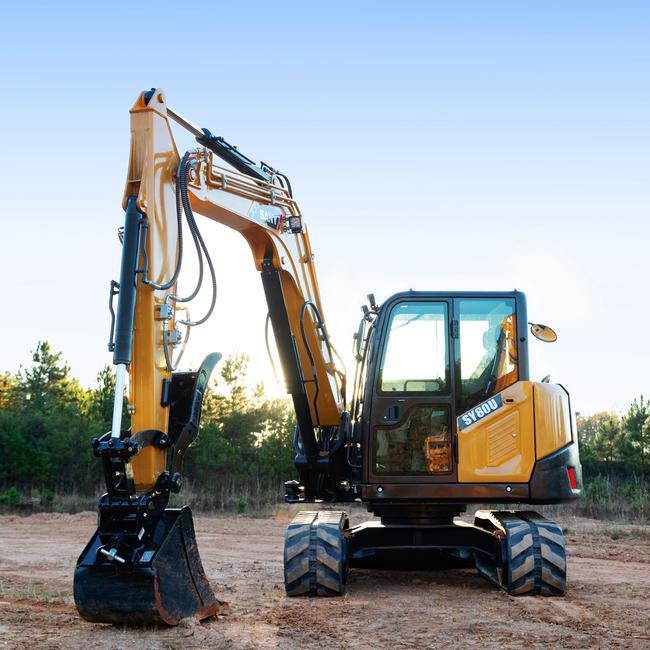

Sany SY80U Excavator
Finance a brand new Sany SY80U excavator today with America's best 5 year 5,000 warranty! We've got Sany SY80U excavators in stock and ready for your next rental or sale! Give us a call today!
Tier 4f/ Stage IV Certified
Rated Power: 73hp
Operating Weight: 19,401 lb
Bucket Breakout: 16,343 lbf
Dig Depth: 14'
Sany SY80U Excavators For Sale
Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500

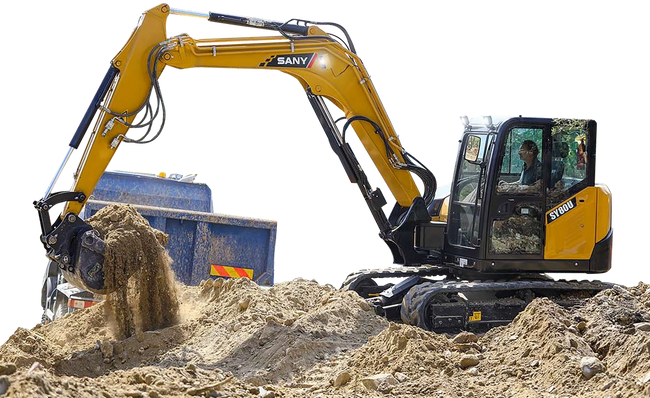

Meet the New Sany S80U Excavator
Built for endurance and power, the SY80U has a freshly reinforced boom, arm, swing platform, undercarriage, and an efficient and reliable Yanmar engine. The Sany SY80U gives you an independent boom swing for offset digging with outstanding breakout force and has a short tail swing to work in tight areas with confidence. Features joystick controls and a bi-directional auxiliary hydraulic system, in a compact excavator design that proves you don’t have to trade size for performance. The comfortable cockpit features heating and AC for all-day operation in any climate, and the maintenance-friendly design allows quick access to all service points to minimize downtime.
Sany SY80U Tech Specs
OVERAL DIMENSIONS
Transport Length: 23'
Transport Width: 7' 3"
Transport Height: 8' 5"
Upper Structure Width: 7' 3"
Blade Height: 16"
Track Width: 18"
Track Gauge: 5' 9"
Ground Clearance: 14"
Tail Swing Radius: 4' 10"
Track Length on Ground: 7' 7"
Track Length: 9' 7"
TECHNICAL SPECIFICATIONS
Operating Weight: 19,401 lb
Ground Pressure: 5.5 psi
Engine: Yanmar 4TNV98CT
Displacement: 202.5 in³
Gross Power: 73 HP
Hydraulics: Load Sensing with Pilot Controls
Main Hydraulic Pump: Axial Piston – Variable Displacement
Operating Flow: 26 gal/min
Operating Pressure:| 3,814 psi
Travel Speeds: 1.6/2.8 mph
Travel Effort: 15,736 lbf
Grade Capability: 35°
TrackTrack Shoe Width: 18"
Track Rollers: (per side) 5 Carrier Rollers (per side)1
WORKING RANGE
Boom Length: 11' 6"
Stick Length: 6' 9"
Maximum Digging Height: 24'
Max Dump Height: 17' 10"
Max Dig Depth: 14' 10.5"
Max Vertical Dig Depth: 8' 2"
Max Reach at Ground Level: 23' 11"
Min. Swing Radius: 7' 11"
Bucket Breakout Force: 16,343 lbf
Arm Breakout Force: 9,105 lbf
Sany SY80U Machine Features
- Powerful and reliable Yanmar engine
- Independent boom swing and true zero tail swing
- The Sany 80U boasts Load Sensing Hydraulic with Pilot Controls and ISO/SAE Pattern Change
- Spacious, temperature controlled cab with improved visibility and proportional controls
- Cylinder guards to increase uptime and mitigate the risk of damage
- Pre-plumbed auxiliary lines and thumb-ready
- Bright LED lighting for safety during night work
- Bluetooth
- Comes standard with rubber tracks. Steel tracks are optional.
The SY80U 's Auto Deceleration System
The function of auto deceleration reduces fuel consumption by 5-10%. When an operation has been stopped for 3.5 seconds, the Sany 80U's engine speed drops automatically to idle level and maintains the idling state. When the operation is resumed by maneuvering the control levers, the engine speed will increase to the set rpm within 0.1 seconds. The working capability is restored instantly. The auto-idle switch is always active after the Sany SY80U is restarted each time.
Operator Comfort
Innovative Large Cab
Larger windows of the Sany SY80U 's spacious cab provide you with a wider view. The operator can clearly see the work equipment condition and the surrounding through the front, side, and back windows.
The upper window of the cab can be moved to the top of the cab when the front window is unlocked. The roof hatch is openable, through which the cab can have better ventilation and more lights.
Multi-Level A.C.
The high-quality automatic air conditioner in the Sany SY80U provides a better cooling effect. It creates a more comfortable operating environment by automatically regulating the temperature and humidity inside the cab as the ambient condition changes.
Sealed & Quiet
The Sany 80u comes equipped with an excellent sealing ring, the cab is free from dust and rain. Besides the low-noise design, indoor noise under 74 decibels can effectively relieve the fatigue of the operator.
Sany SY80's LCD Display Controller
A multi-functional controller ensures the system constantly in optimum condition. When the joysticks are not operated for 3.5 seconds, the controller immediately commands the engine to lower the speed in order to reduce fuel consumption; when the engine or hydraulic system is abnormal, the fault information will appear on the monitor to warn you. High brightness, wide viewing angle industrial LCD allows the operator to easily getting the information in the seat.
Sany SY80U Excavator Parts
Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY80U excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588
Looking for A Used Sany SY80U Excavator?
Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used excavator, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used excavators.
