Sany SY50U Excavator
Finance a brand new Sany SY50U excavator today with America's best 5 year 5,000 warranty! We've got Sany SY50U excavators in stock and ready for your next rental or sale! Give us a call today!
Tier 4F Certified
Rated Power: 42 hp / 31.2 kW (2,400rpm)
Total Weight: 11,905 lb / 5,400 Kg
Bucket Digging Force: 7,306 lb / 32.5 kN
Dredging depth: 11.2 ft. / 3.42 m
Sany SY50U Excavators For Sale

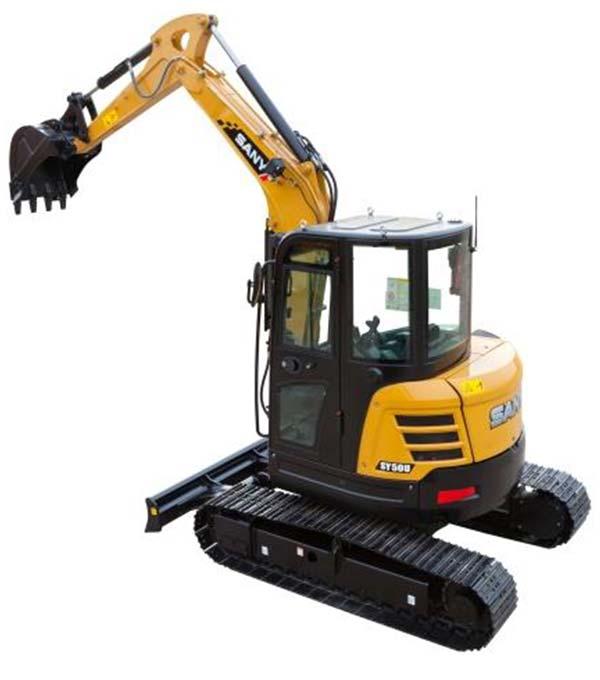

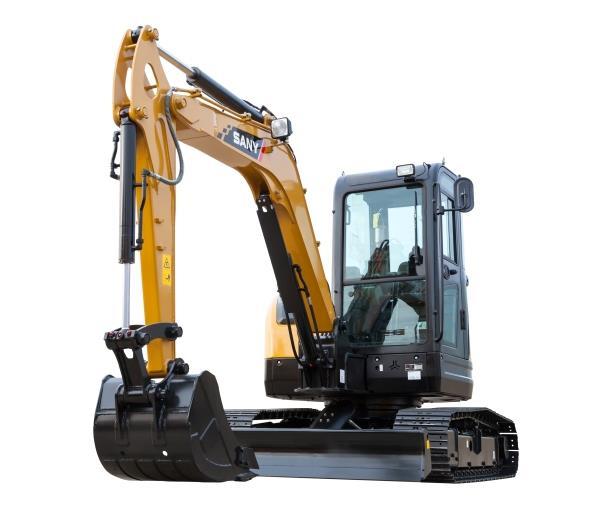

The All-New Sany SY50U Excavator
The Sany SY50U excavator has been designed and engineered to do heavy work in tight places! The excavator's pivoting boom and zero tail swing allow the Sany SY50U to work well near walls or other barriers. The excavator helps you work efficiently while maximizing your job site productivity. This Sany 11,905 lb. mini excavator has many features to help operators achieve the balance of power, portability, fuel efficiency, and speed. The excavator also comes standard with structural reinforcements to help keep operators safe.
The 11,905lb Sany SY50U adopts a Yanmar 4TNV88C engine, with a 34 kW power force. The excavator'S engine delivers new levels of efficiency and productivity to help you get the most out of your investment.
Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the heavy equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500
The SANY SY50U Walkaround Video
Sany SY50U Tech Specs
Weight
Operating weight (metric tons):
5.40
Operating weight (lbs):
11,905
Bucket
Bucket capacity, heaped min-max (cu ft):
3.5 - 6.7
Hydraulics
Total flow: Pumps and Swing (gpm):
29
Max relief valve pressure (psi):
3,553

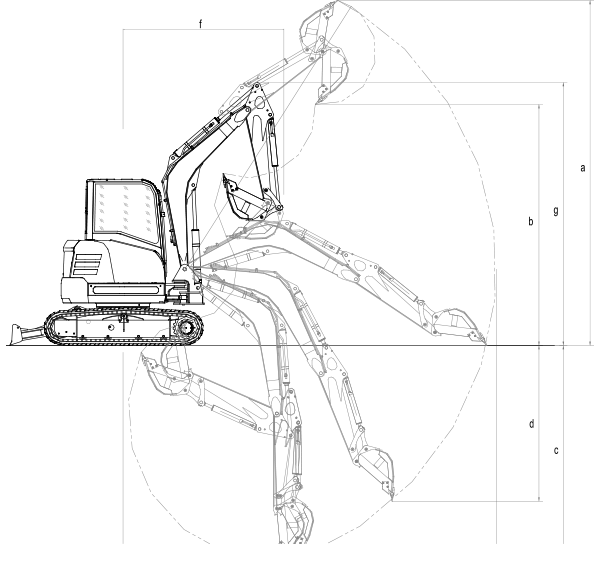

Performance
Arm (stick) length used for dimensions & forces (ft/in):
4' 11"
Max dig depth (ft/in):
11' 3"
Max depth of vertical wall (ft/in):
8' 1"
Reach- ground level (ft/in):
19' 3"
Dump height (ft/in):
12' 6"
Boom swing, right/left (deg):
54° / 58°
Bucket digging force (lbs):
7,306
Engine
Engine make:
Yanmar
Engine model:
4TNV88C-PSY
Net hp:
39.0

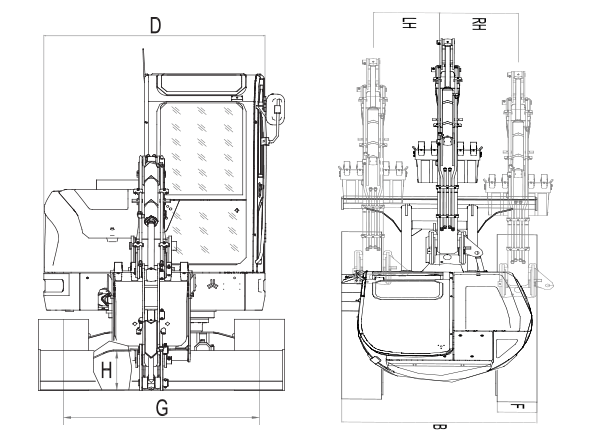

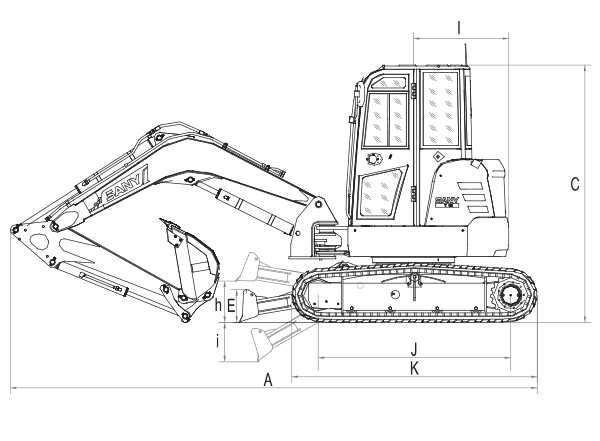

Dimensions
Transport length (ft/in):
17' 8"
Transport height (ft/in):
8' 8"
Transport width (ft/in):
6' 5"
Tail overhang over side (in):
0"
Sany SY50U Machine Features
• The Engine on a Sany SY50U is a Yanmar 4TNV88C with a Tier 4 certification.
• SANY SY50U excavators have excellent cab space, wide visibility, and easy access to controls to maximize operator comfort.
• The Sany SY50 compact excavator uses an enhanced engine/hydraulic management system. This offers excellent control and high productivity without compromising fuel-efficient performance.
• Standard features on the Sany SY50 mini excavator include auxiliary hydraulics and a pattern-control change valve.
•Sany Focuses on reliability and serviceability to ensure convenient access and increased up-time on your job site.
High-Performance Engine
High Economy
The Sany SY50U boasts a tier 4 Yanmar final power plant. The engine on the SY50U also uses an advanced SLSS hydraulic system. This mini excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on the Sany SY50U reduce fuel consumption during operation.

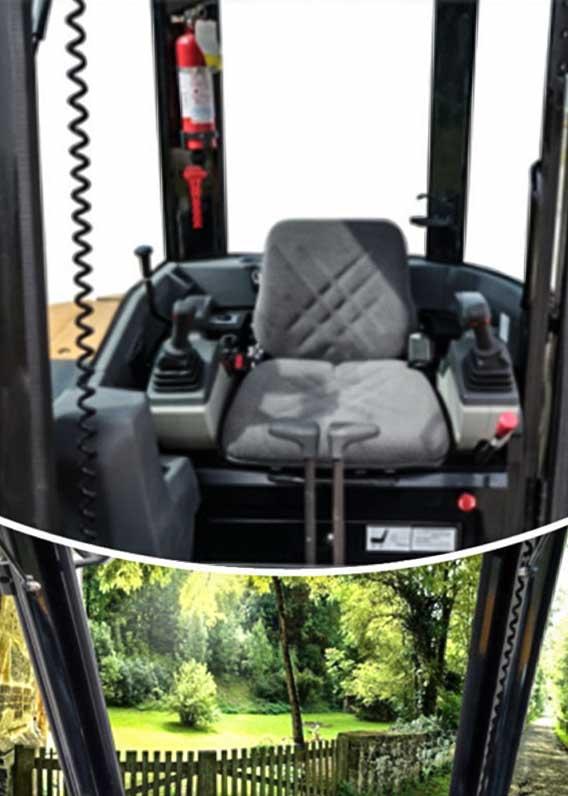

Operator Comfort
Innovative Large Cab
The Sany SY50U Excavator boasts a large cab equipped with an adjustable suspension seat. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.
Controls & Levers
The control levers and joysticks on this compact excavator are designed and arranged according to ergonomics. In other words, the excavator can be operated quite easily! Each operation button is easily within the reach of the operator.
Silicone Rubber Shock Absorber
A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increases the cab stability of the SY50U, while improving operator comfort.
Luxurious Mechanical Damping Seat
The suspension rigidity can be adjusted according to the drivers' weight, effectively absorbing the vibration came from the cab floor to improve comfort and reduce fatigue.
Pressure Sealed Cab
The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.
Zero Turn Swing Radius
Zero Turn & Independent Boom
• With a zero tail swing radius and independent boom swing the Sany SY50U allows for operation in extremely confined spaces. This mini excavator can go places that were previously inaccessible!

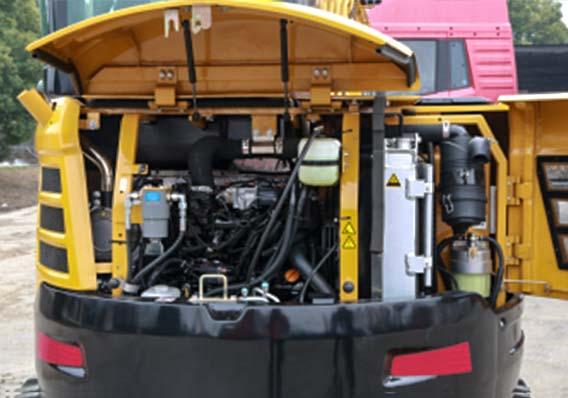

Servicing Accessibility
Access with Ease

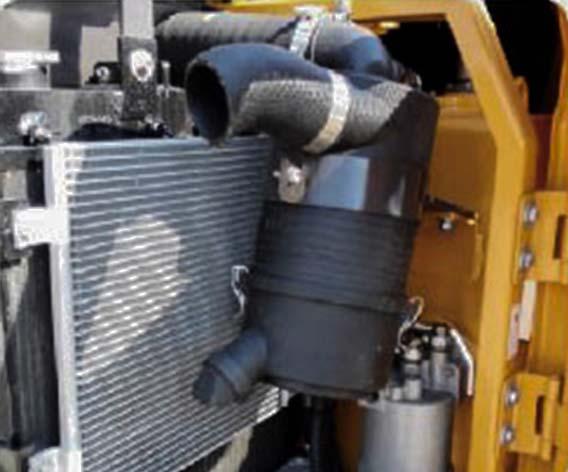

The Sany SY50U has easily accessible service points and a detachable radiator screen. These features make scheduled maintenance on this mini excavator super easy and convenient.
Sany SY50U Excavator Parts
Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY50U excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588
Looking for A Used Sany SY50U Excavator?
Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used excavator, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models, and ages. Use the button below to view our full inventory of used excavators.
